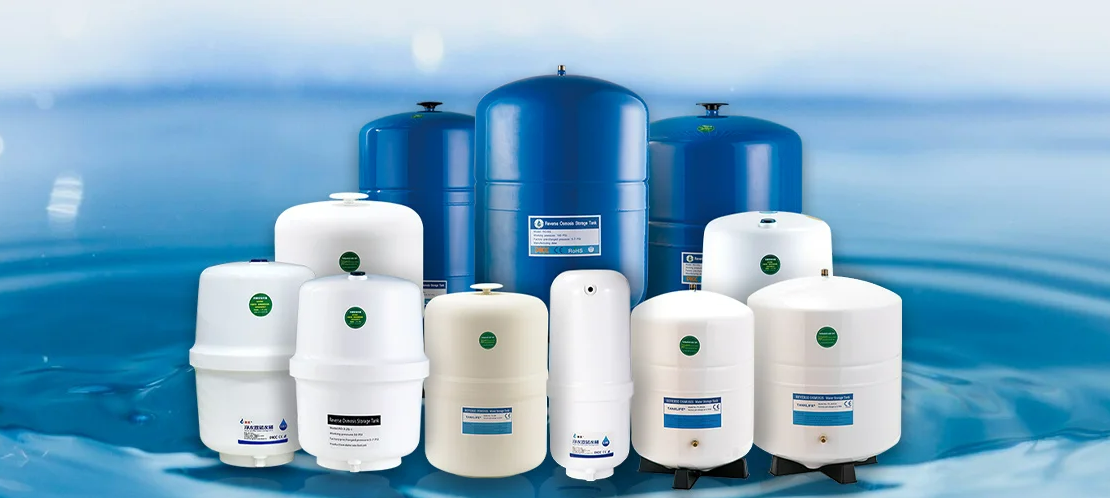

PRODUCT Expansion,Air,Ro,Pressure Tank

Plastic Ro Tank Specifications

Model No.	Dimensions		Total Volume		Shipping Volume		Shipping Weight
Model No.	CM	INCH	LITERS	GALLON	CBM	FT³	KG	LBS
TL-2.0G	37.0	14.57	7.57	2.0	0.009	0.32	1.40	3.09
TL-3.2GS	32.5	12.80	10.6	3.0	0.017	0.60	1.84	4.06
TL-3.2G	33.1	13.00	11.0	3.2	0.021	0.74	2.30	5.07
TL-4.0GS	36.1	14.17	14.4	3.8	0.024	0.85	2.50	5.51
TL-4.0G	38.2	15.00	15.0	4.0	0.029	1.02	3.00	6.61

Model No.	Dimensions				Total Volume		Shipping Volume		Shipping Weight
Model No.	Height		Diameter		Liters	Gallon	CBM	FT³	KG	LBS
TL-15P	35.8	14.1	28.0	11	15	4.0	0.029	1.02	4.15	9.15
TL-16P	38.5	15.16	25.0	9.8	16	4.2	0.028	0.98	4.00	8.82
TL-19P	40.1	15.8	28.0	11	19	5.0	0.036	1.30	4.32	9.52

Model No.	Dimensions						Total Volume		Shipping Volume		Shipping Weight
Model No.	Height		Diameter		Base		Liters	Gallon	CBM	FT³	KG	LBS
TL-RO122	35.5	13.98	22.8	8.98	3.5	1.38	10.6	3.2	0.021	0.74	2.75	6.06
TL-RO132	36	14.2	28	11	3.5	1.38	16.65	4.4	0.030	1.06	3.6	7.94
TL-6G	44	17.32	28	11	3.5	1.38	22.7	6	0.036	1.27	4.2	9.26
TL-11G	59	23.58	38.4	15.12	15.7	6.18	42	11	0.096	3.39	10	22.05
TL-20G	79	31.18	38.4	15.12	15.7	6.18	80	20	0.128	4.48	12	26.46
