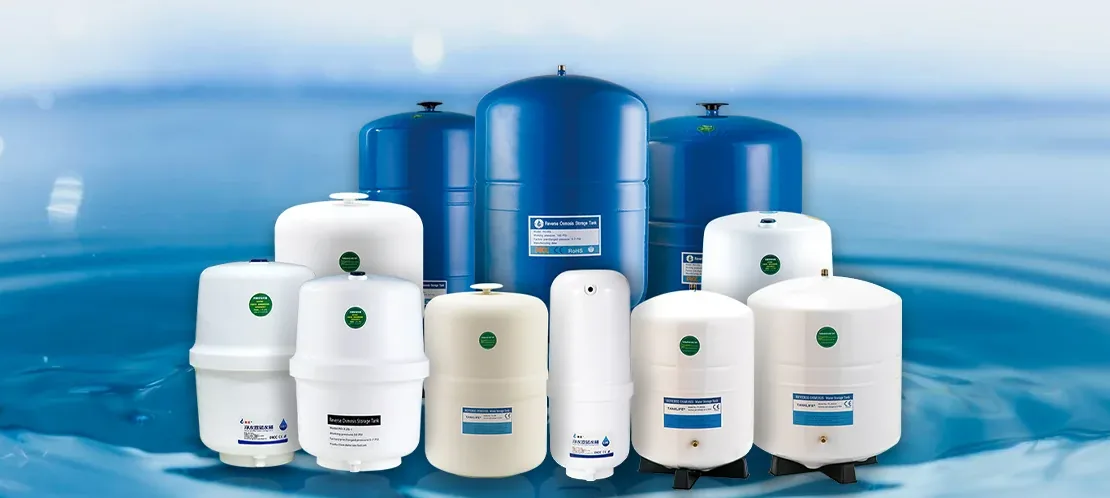

RO Water Storage Tank Manufacturer — Plastic, Plasteel and Steel Tanks
Plastic Ro Tank Specifications
| Model No. | Dimensions | Total Volume | Shipping Volume | Shipping Weight | ||||
|---|---|---|---|---|---|---|---|---|
| CM | INCH | LITERS | GALLON | CBM | FT³ | KG | LBS | |
| TL-2.0G | 37.0 | 14.57 | 7.57 | 2.0 | 0.009 | 0.32 | 1.40 | 3.09 |
| TL-3.2GS | 32.5 | 12.80 | 10.6 | 3.0 | 0.017 | 0.60 | 1.84 | 4.06 |
| TL-3.2G | 33.1 | 13.00 | 11.0 | 3.2 | 0.021 | 0.74 | 2.30 | 5.07 |
| TL-4.0GS | 36.1 | 14.17 | 14.4 | 3.8 | 0.024 | 0.85 | 2.50 | 5.51 |
| TL-4.0G | 38.2 | 15.00 | 15.0 | 4.0 | 0.029 | 1.02 | 3.00 | 6.61 |
Plastic Ro Tank Features
- FDA & RoHS approved polypropylene raw material
- Patented pressure resistance technology, weld seam always remains intact
- Minimum 18 KG/1.8 Mpa/17.65 bar pressure strength
- Patented 8KG & 12KG diaphragm structural durability
- Antibacterial & post cured butyl diaphragm
- Industry leading mold thickness
- Double O-ring air charge valve
- Single unit molded tank base
- Extensive testing
- Compatible with all RO systems
Select by usable drawdown and system conditions
Choose an RO storage tank by usable drawdown, system pressure range, pre-charge setting, water-contact material, connection size, available installation space, destination market, and order quantity. Plastic, plasteel, and steel constructions have different weight, corrosion, packaging, and size characteristics; the correct choice depends on the complete system rather than shell material alone. Confirm the selected model’s nominal volume, usable drawdown under the intended pressure conditions, maximum working pressure, water-contact documentation, dimensions, and connection standard. The linked selection guide supports preliminary comparison, while final procurement should rely on the current model specification and the requirements of the complete RO system.
