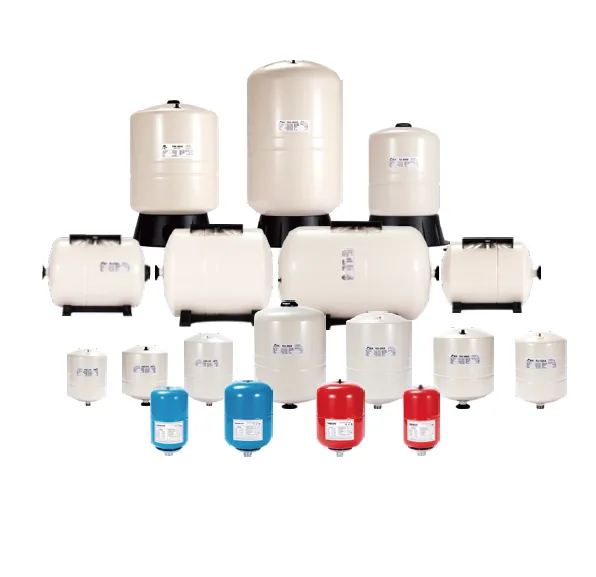

Fixed Expansion Tanks
| Max.Operating Pressure: | 10 bar /145 psi |
| Factory Pre-charge: | 1.9 bar /28 psi |
| Test Pressure: | 14.3bar/207psi |
| Min.Op.Temp.: (avoid freezing) | -10°C/14°F |
| Max.Operating Temp.: | 90°C / 194°F |
| Material of interface: | 304 stainless steel |
| Connection: | 1"BSPT |

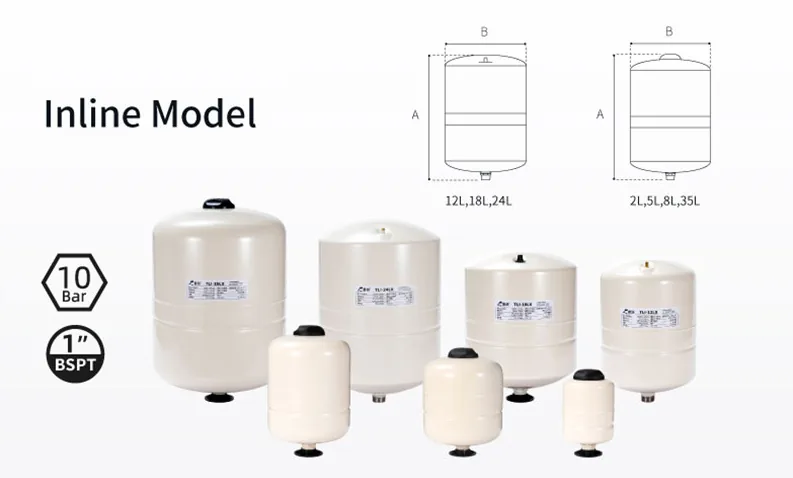

Inline Model Tanks
| Model Number | Conection (in) | Nominal Volume (L/G) | Dimensions (mm) | Weight | wall thickness (mm) | |||
|---|---|---|---|---|---|---|---|---|
| A | B | C | kg | lb | ||||
| TLI-2LX | 1"BSPT | 2 / 0.5 | 208 | 126 | - | 1.05 | 2.32 | 1.1 |
| TLI-5LX | 5 / 1.3 | 272 | 202 | - | 2 | 4.41 | ||
| TLI-8LX | 8 / 2.1 | 310 | 202 | - | 2.3 | 5.07 | ||
| TLI-12LX | 12 / 3.2 | 353 | 230 | - | 3 | 6.61 | ||
| TLI-18LX | 18 / 4.8 | 374 | 278 | - | 3.85 | 8.49 | ||
| TLI-24LX | 24 / 6.3 | 440 | 290 | - | 4.7 | 10.36 | ||
| TLI-35LX | 35 / 9.2 | 480 | 318 | - | 5.55 | 12.24 | 1.1 | |

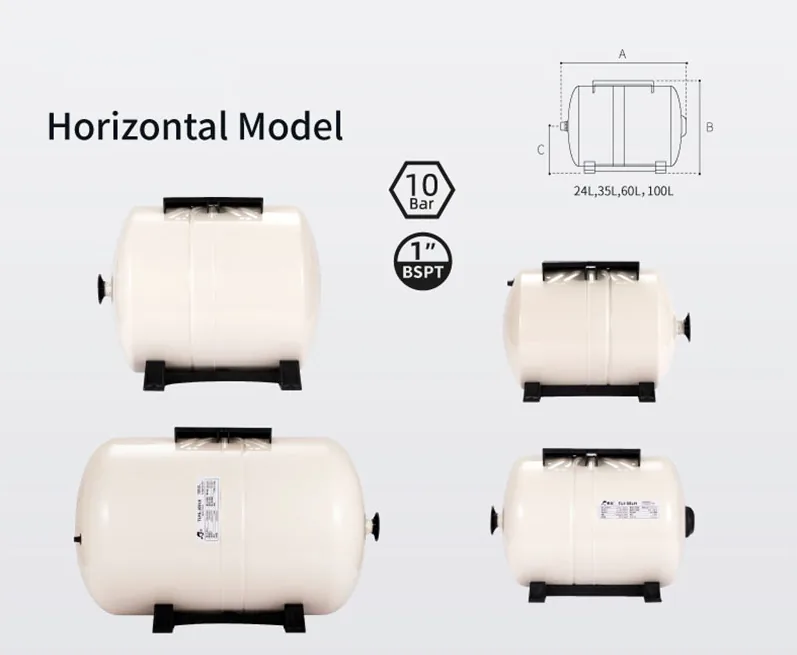

Horizontal Model Tanks
| Model Number | Conection (in) | Nominal Volume (L/G) | Dimensions (mm) | Weight | wall thickness (mm) | |||
|---|---|---|---|---|---|---|---|---|
| A | B | C | kg | lb | ||||
| TLI-24LH | 1"BSPT | 24 / 6.3 | 447 | 322 | 163 | 5.15 | 11.35 | 1.1 |
| TLI-35LH | 35 / 9.2 | 480 | 352 | 177 | 5.95 | 13.12 | ||
| TLI-60LH | 60 / 15.9 | 530 | 422 | 213 | 10.9 | 24.03 | 1.5 | |
| TLI-100LH | 100 / 26.4 | 720 | 466 | 237 | 15.35 | 33.73 | ||

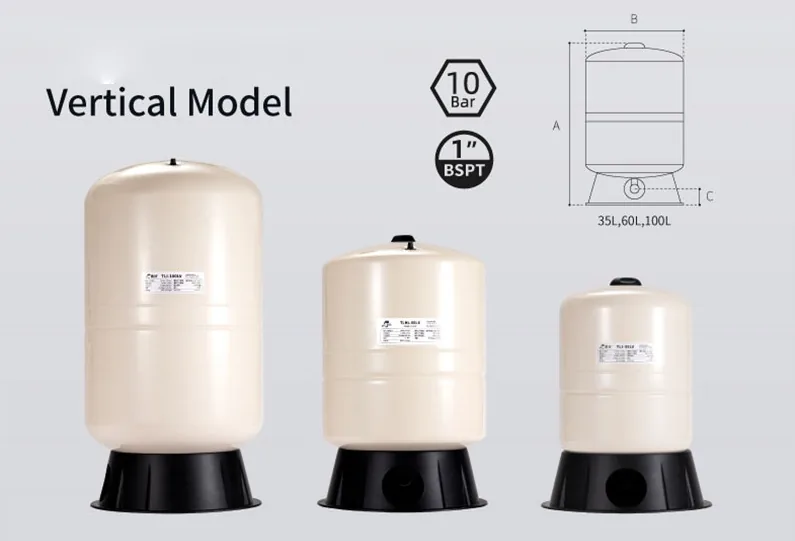

Vertical Model Tanks
| Model Number | Conection (in) | Nominal Volume (L/G) | Dimensions (mm) | Weight | wall thickness (mm) | |||
|---|---|---|---|---|---|---|---|---|
| A | B | C | kg | lb | ||||
| TLI-35LV | 1"BSPT | 35 / 7.95 | 550 | 318 | 63 | 6.2 | 13.67 | 1.1 |
| TLI-60LV | 60 / 15.9 | 623 | 387 | 67 | 11 | 24.25 | ||
| TLI-100LV | 100 / 26.4 | 810 | 428 | 66 | 15.5 | 34.17 | 1.5 | |
Product details
Product Structure
- ① O-ring protection no leakage air valve cover
- ② Thickened 1.1mm carbon steel tank body 10bar pressure resistance
- ③ Fixed butyl rubber diaphragm, no air leakage and maintenance-free
- ④ Food grade and corrosion-resistant polypropylene lining
- ⑤ Reinforced 304 stainless steel interface
- ⑥ Replaceable reinforced engineering thermoplastic brackets and feet
- ⑦ Water storage area is isolated from the barrel wall
- ⑧ Air storage chamber
- ⑨ Durable and high-adhesion spray plastic coating

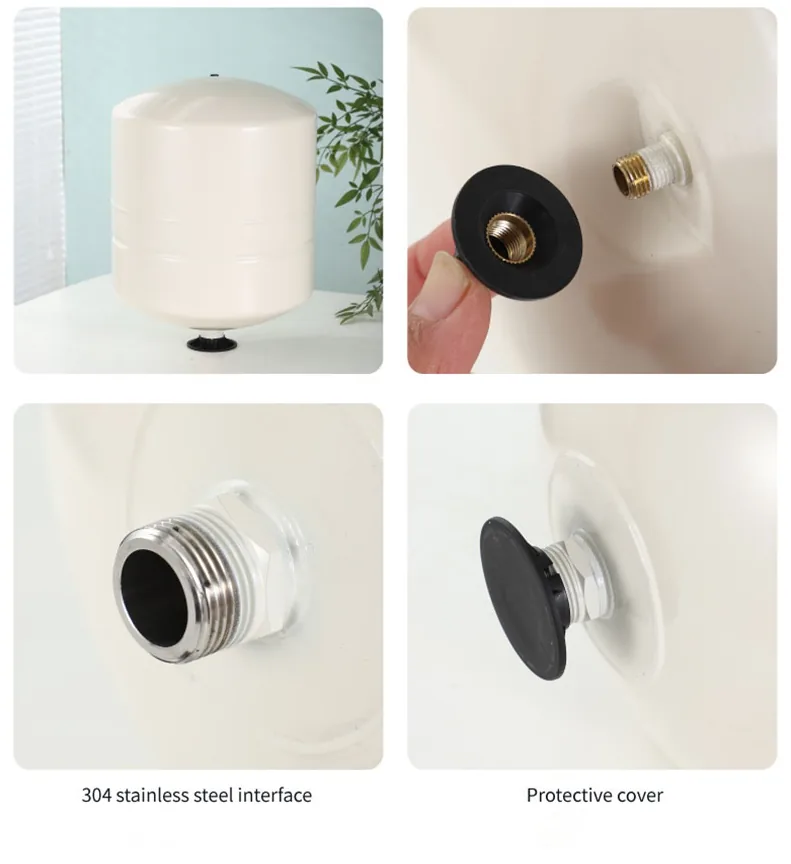

Product Detail Photos

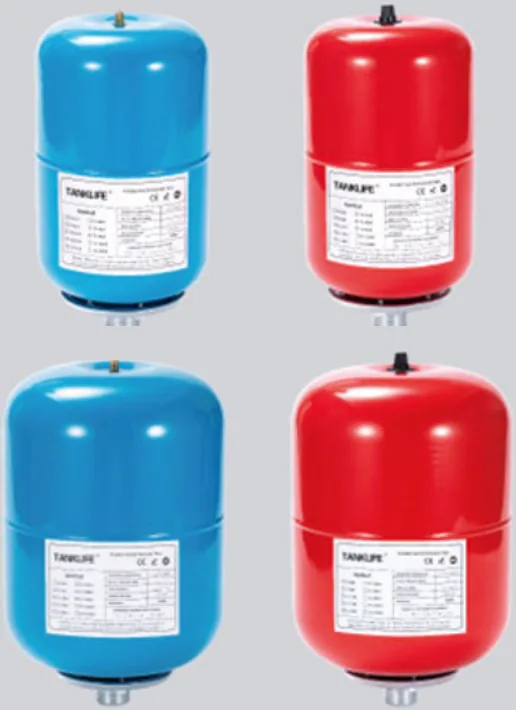

Replaced Expansion Tank
| Max.Operating Pressure: | 8 bar / 116 psi, 10 bar / 145 psi |
| Factory Pre-charge: | 1.5 bar, 1.8 bar, 2.5 bar |
| Min.Op.Temp.: (avoid freezing) | -10°C / 14°F |
| Max.Operating Temp.: | 100°C / 212°F |
| Material of interface: | Galvanized Steel |
| Connection: | 1"BSPT |
Replaced Expansion Tank Specifications
| Model Number | Connection (in) | Nominal Volume | Dimensions (mm) | Weight | wall thickness (mm) | ||||
|---|---|---|---|---|---|---|---|---|---|
| L | G | A | B | C | kg | lb | |||
| TLL-5LR (8bar) | 1"BSPT | 5 | 1.3 | 292 | 151 | - | 1.17 | 2.57 | 0.8 |
| TLL-8LR (8bar) | 8 | 2.1 | 325 | 201 | - | 1.6 | 3.52 | 0.8 | |
| TLL-5LR (10bar) | 5 | 1.3 | 292 | 152 | - | 1.5 | 3.31 | 1.1 | |
| TLL-8LR (10bar) | 8 | 2.1 | 325 | 202 | - | 2.1 | 4.63 | 1.1 | |
Specify the application before choosing a tank
Select an expansion tank from the system fluid volume, minimum and maximum temperature, cold fill pressure at the tank connection, relief-valve setting, fluid composition, and required acceptance volume. Also specify vertical, horizontal, or inline installation; connection size and thread standard; replaceable or fixed diaphragm; destination market; and quantity. Published nominal capacity is not the same as acceptance volume, so confirm the model’s acceptance data and pressure-temperature limits before ordering. For preliminary calculations, use the linked sizing guide; for a project review, send the full operating conditions rather than only a requested tank size.
